Moose Sound – LOUD Series Active Line Array Speaker System
- MOOSE – LOUD SERIES – ACTIVE LINE ARRAY SYSTEM

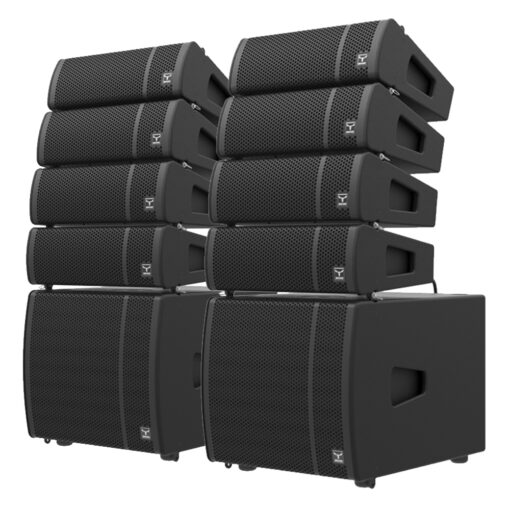

- Complete Line Array Speaker System – Price is for 2 Active Subwoofers and 8 Passive Satellite Speakers.
- Exclusive to us the system now also includes the FL Fly Bar accessory for flying the Array from appropriate truss or rigging.
- The ultimate in “all-in-one” complete and convenient “plug-n-play” PA system solution for small venues with class D amp & DSP that can be used in flown and stacked positions.
- Made In Portugal .
- Complete PackageFEATURES
- Compact self-powered line array system
- Suited for small and medium size venues
- 15″ LF active subwoofers
- 2x 5″ MF + 1″ HF passive satellites
- Subwoofers driven by a Class D amplifier
- Built-in DSP with 5 selectable presets
- Rugged and durable polyurea coating

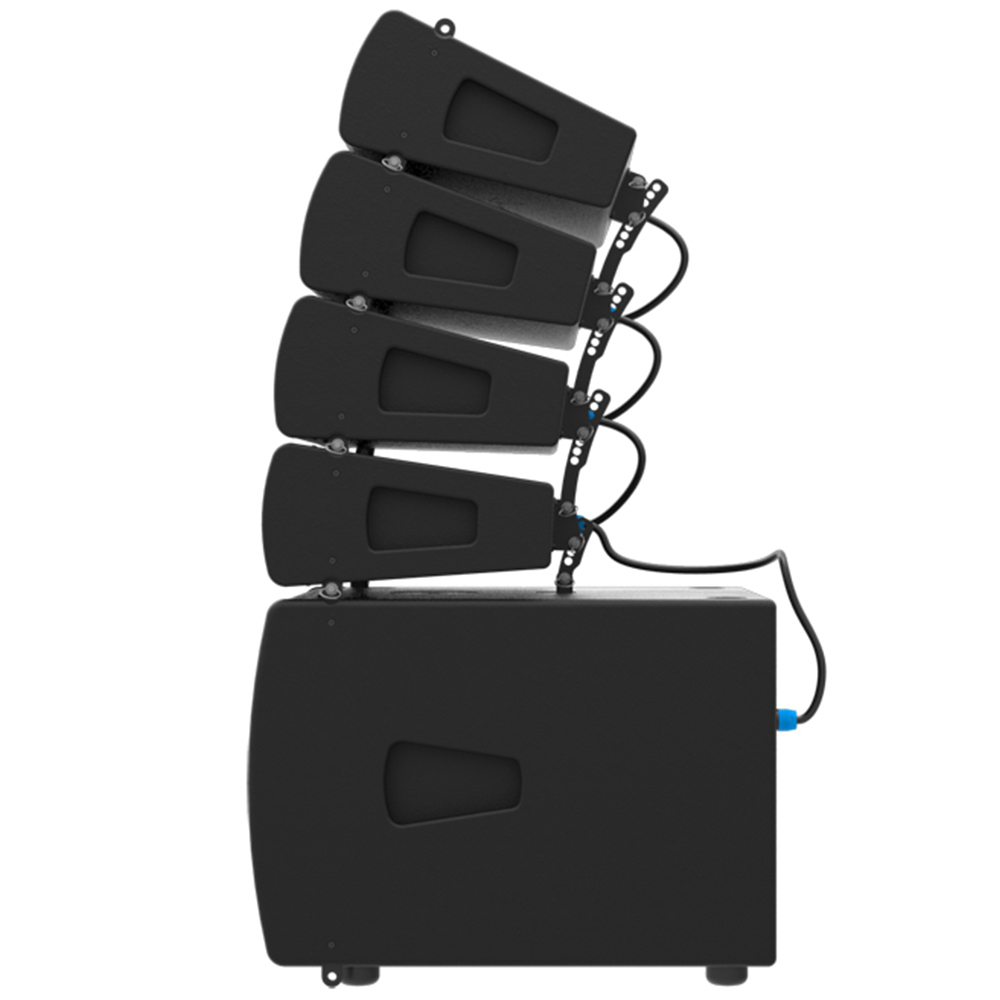

- Great flexibility in shaping array curvature
TYPE
Active Line array systemENCLOSURE DESIGN
Bass reflex [LOUD15] Trapezoidal array element [LOUD205]Universal 85-264Vac mains supplyIntegrated rigging system for stacked and flown configurations
- POWER OUTPUT (RMS)
700W [LOUD15] 400W [LOUD205]FREQUENCY RANGE
45Hz – 19kHzTRANSDUCER TYPE
15″ (3in) LF EU transducer [LOUD15] 2x 5″ MF + 1″ HF EU transducers [LOUD205]DISPERSION
120° horizontal (average)
Array splay dependant vertical coverageCROSSOVER FREQUENCY
Adjusted by fully programmable DSP
48KHz sampling frequency
24 bit AD/DA converterMAX. SPL (PEAK)
128dB @ 1m [LOUD15] 113dB @ 1m [LOUD205]AMPLIFIER TYPE
Class DAMPLIFIER OUTPUT
720W + 720W rms @ 4ohm
2000W (peak)INPUT
XLR/jack combo connectorOUTPUT
XLR 3pINDICATORS
Power, signal/presetCONTROLS
Master level control, 5 selectable presetsAC POWER SUPPLY
Switching power supply, 85-264VacAC MAINS CONNECTOR
Neutrik® powerCON, Power-in (blue)/Power-out (grey)PROTECTION
Over current, short circuit, thermal, DC and HF protectionsCONSTRUCTION
15mm birch plywood, textured polyurea coating [LOUD15] 15mm birch plywood, textured polyurea coating [LOUD205]GRILLE
Custom perforated metal grille with acoustic foamINSTALLATION / RIGGING / FLYING
Integrated steel rigging system
Metal frame for flying and ground stacking availableDIMENSIONS (WXDXH)
490x495x430mm / 19.29×19.49×16.93in [LOUD15] 492x340x170mm / 19.29×13.39×6.69in [LOUD205]WEIGHT
30Kg / 103.6lb [LOUD15] 7,5Kg / 16.5lb [LOUD205]
